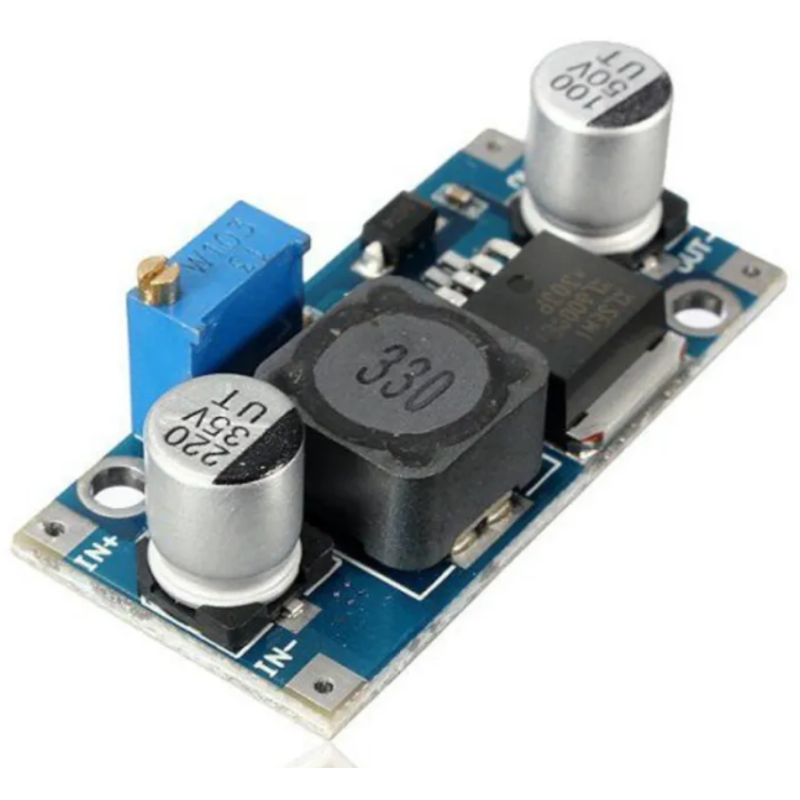

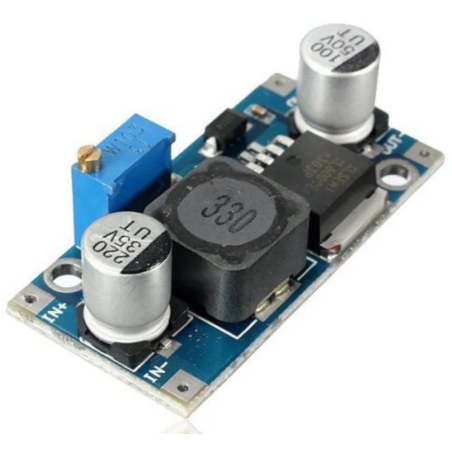

HW-432 XL6009 DC to DC Boost Converter – Adjustable Step-Up Voltage Module

The HW-432 XL6009 Boost Converter Module is a high-performance DC-DC step-up power supply that can increase low input voltage to a higher, stable output voltage. It's based on the XL6009 switching regulator chip, which offers improved efficiency and performance over older LM2577-based designs.

Key Features:

• 🔋 Input Voltage: 3V to 32V DC
• ⚡ Output Voltage: 5V to 35V DC (adjustable)
• 📈 Output Current: Up to 4A (2A recommended for stable use)
• ⚙️ Efficiency: Up to 94% (depends on load and voltage)
• 🔧 Adjustment: Potentiometer to set desired output voltage
• 📦 Module Size: Approx. 43mm x 21mm
• 🛡️ Protection: Built-in heat sink for temperature management

Perfect For:

• 🔋 Powering Arduino or Raspberry Pi from batteries
• 💡 LED lighting projects
• 📱 USB power bank making
• 📶 Communication and sensor modules
• 🔬 Lab testing and prototyping

How to Use:

1. Connect input voltage source (battery, solar panel, etc.) to VIN and GND.
2. Adjust the onboard potentiometer to set your desired output voltage using a multimeter.
3. Connect your load/device to VOUT and GND.

Important Notes:

• ⚠️ The output voltage must always be higher than input voltage.
• ⚠️ Heat sink recommended for loads over 2A or when stepping up significantly.
• ⚠️ Use a multimeter when adjusting output to avoid damage to sensitive devices.

Package Includes:

• 1 × HW-432 XL6009 DC-DC Boost Converter Module

Why Buy from Bahawal Store?

• ✅ Tested modules with stable performance
• ✅ Fast delivery across Pakistan
• ✅ Support for electronics students and hobbyists
• ✅ Affordable pricing with quality assurance

Boost Your Projects Now

Whether you're building battery-powered systems, prototyping circuits, or powering boards from low-voltage sources — the XL6009 boost converter is a must-have. Order today from Bahawal Store and take control of your power supply!
